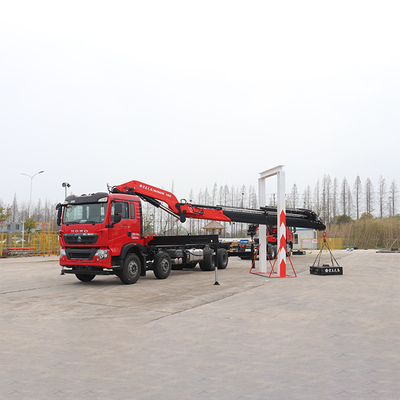

TRUCK CRANE Factory Mobile Cranes Direct Sale 6 Knuckle Telescopic Boom Crane Hook Crane Used In Construction Industry

1 piece
MOQ
TRUCK CRANE Factory Mobile Cranes Direct Sale 6 Knuckle Telescopic Boom Crane Hook Crane Used In Construction Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: Construction Industry,road Rescue
Rated Loading Capacity: 20000 KG
Rated Lifting Moment: 6600
Max. Lifting Height: 18.5 (from The Crane Support Face)
Span: 7.48m
Warranty: 1 Year
Hydraulic Cylinder Brand: Premium Brand
Hydraulic Pump Brand: Premium Brand
Hydraulic Valve Brand: Premium Brand
Engine Brand: Premium Brand
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Other
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG): 53000 Kg
Product Name: K430 Truck Crane
Product Category: K430
Product Brand: HC Tianmia Hotsell
Maximum Load Moment (kN.m): 400
Maximum Lifting Capacity (kg): 20000
Number Of Expansion Joint Sections: 6
Derricking Angle (°): 1~80
Maximum Lifting Height (m): 18.5 (from The Crane Support Face)
Rotating Angle (°): Full Slewing
Basic Infomation
Payment & Shipping Terms
Packaging Details: Shipment according to your needs,The price of the crane does not include the price of the car chassis
Product Description
Product Description

Product Configuration

1. Standardly configured with six-section hydraulic telescopic jib, with working radius of 16.8m;
2. Standardly configured with large torque slewing reducer, with slewing torque up to 37.5kN.m;
3. Bilateral longitudinal hydraulic telescopic outrigger, with standard short travel L=450mm, optional long travel L=550mm;
4. Dual-level transverse hydraulic outrigger, up to 7.48m, achieving higher stability. Hydraulic oil tube outbuilt, sequential
expansion;
5. Transverse/longitudinal outrigger standardly configured with lock valve;
6. A single multiplex valve to control the crane outrigger, and four sets of auxiliary outrigger oil passages;
7. Standardly configured with imported 64L/min large displacement inclined shaft high pressure plunger pump for higher working efficiency. Optional imported 84 L/min larger displacement inclined shaft high-pressure plunger pump;
8. Red water paint and labeling; customized red water paint and labeling supported;
9. 257/153L hydraulic fuel tank;
10. Load holding valve, telescopic jib cylinder balance valve and crane control multiplex valve for constant flow oil pump;
11. High pressure filter;
12. 19.5KW high-power intelligent temperature control radiator, effectively controlling the hydraulic oil temperature and
increasing the continuous operation ability;
13. Standard 24V voltage;
14. Standard electric control system, including 2 working lamps, radiator indicator lamp, high voltage filter alarm lamp;
15. High-positioned rotating seat
16. Standardly configured with level indicators on the operating tables on both sides of the crane;
17. Equipped with external oil passage oil collection interface.
Technical Parameters
Technical Parameters
Product category
K430
Maximum load moment (kN.m)
400
Maximum lifting capacity (kg)
20000
Maximum working radius (m)
16.8
Maximum lifting height (m)
18.5 (from the crane support face)
Number of hydraulic telescopic jib sections
6
Derricking angle (°)
1～80
Rotating speed
1.2～1.5r/min
Rated working pressure (MPa)
30
Rated flow (L/min)
60
Crane dead-weight (kg)
5900
Total mass with chassis
25～30
Application Scenarios
Company Profile
Why Choose Us

Product advantages:

1. A new generation of lightweight platform with a high starting point;
2. Reliability test, which is three times higher than the industry standard, thus achieving high reliability;
3. By reference to international standards to ensure good scalability;
4. With compact structure and made of imported high-strength steel, so that the whole machine is lighter;
5. Double four-link derricking mechanism, with the second derricking having15° negative angle, achieving wide application and flexible operation;
