Home /Products/Articulating Boom Truck/CRANE Lift Arm Hydraulic Straight Boom Telescopic Lorry Crane Mini Truck Mounted Crane Boom TRUCK

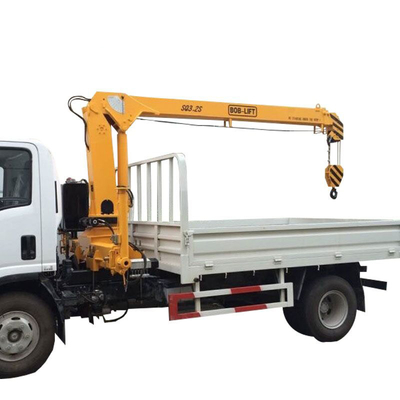

CRANE Lift Arm Hydraulic Straight Boom Telescopic Lorry Crane Mini Truck Mounted Crane Boom TRUCK

1 Set
MOQ
$8,000.00(1 - 4 Sets) $7,700.00(5 - 9 Sets) $7,200.00(>=10 Sets)
Price
CRANE Lift Arm Hydraulic Straight Boom Telescopic Lorry Crane Mini Truck Mounted Crane Boom TRUCK
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Mexico, Thailand, Chile
Condition: New
Application: Construction
Rated Loading Capacity: 3.2T
Rated Lifting Moment: 6.8Ton.m
Max. Lifting Height: 10m
Span: 1.72-3.12m
Warranty: 1 Year
Hydraulic Cylinder Brand: Yanhuang
Hydraulic Pump Brand: Shenfu
Hydraulic Valve Brand: Qiangtian
Engine Brand: Dogfeng
UNIQUE SELLING POINT: 4-link Bar
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Bearing, Gear
Weight (KG): 1250 Kg
After-sales Service Provided: Overseas Service Center Available
Max Elevation Angle: 75
Color: Color Can Be Selected By Customers
Working Radius: 8.3m
Property: Safe And Reliable
Type: Knuckle Boom And Telescopic Boom
Prominent Structure: Four-bar Linkage
Optional Attachments: Remote Control Equipment
Hydraulic Parts: Made In Italy
Name: Bob Lift Min Truck Mounted Crane 3 Ton Telescopic Boom Crane Truck
Basic Infomation
Payment & Shipping Terms
Packaging Details: Hydra 3 Tons Mini Truck Mounted Crane for Sale 20' open top: 4 units (approx). Standard packing for export
Supply Ability: 100 Set/Sets per Month
Product Description
Product Parameters
Max Lifting Capacity
Ton
3.2
Max Lifting Moment
Ton.m
7
Recommend Power
KW
14
Hydraulic System Flow
L/min
25
Hydraulic System Pressure
MPa
20
Oil Tank Capacity
L
60
Installation Space
mm
750
Self Weight
kg
1150
Product Image


Percision Quality

Outstanding products come from self-demand of intermational level and strict QC system.Advanced research, development and analysis
tools ensure reliability of design, more compact structure design, lighter dead weight, greater load ratio, more optimised and
rational overall lines and aesthetics.


About Us

BOB-LIFT has always taken "customer satisfaction" as the only criterion to measure the quality of its products and services. And to build China's truck mounted crane industry "leading products, value-added services" as the company's development strategy. We
are willing to work hand in hand with every user for common prosperity and development!


Product Advantages

The BOB-LIFT 3.2 ton truck mounted crane is designed with a unique floating three-point axle structure, which effectively reduces
the additional stress on the chassis beam when the vehicle is in form. The rack and pinion cylinder is tilted, the boom is folded
again to make full use of the lower space.
CONTACT
Our Business Partner
BOB-LIFT CRANES
Transport Packaging
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
