Home /Products/Lorry Truck Crane/Brand New CLW 4*2 130HP 3tons 3000L Water Tank Euro 5 JMC Fire Truck Specification 5990*2010*2500

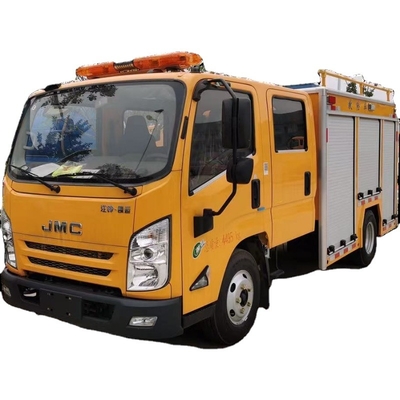

Brand New CLW 4*2 130HP 3tons 3000L Water Tank Euro 5 JMC Fire Truck Specification 5990*2010*2500

1 Set
MOQ
$27,800.00(1 - 4 Sets) $27,500.00(5 - 9 Sets) $27,200.00(>=10 Sets)
Price
Brand New CLW 4*2 130HP 3tons 3000L Water Tank Euro 5 JMC Fire Truck Specification 5990*2010*2500
Features Gallery Product Description Request A Quote
Features
Specifications
Drive Wheel: 4X2
Type: Tanker
Transmission Type: Manual
Condition: New
Horsepower: < 150hp
Tank Capacity: 3001 - 5000L
Emission Standard: EURO 5
Fuel Type: Diesel
Max. Work Height: 6m
Size: 5990*2010*2500
Product Name: JMC Fire Truck
Drive Type: 4*2
Wheelbase: 3360mm
Tank Volume: 3ton Water
Color: Customer's Requirements
Cab: Double-row Cab
Fire Pump: CB10/30
Light: 80W Alarm Light
Fire Fighting Gun: PS30
Rotary Angle: 360
Basic Infomation
Payment & Shipping Terms
Packaging Details: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Supply Ability: 300 Set/Sets per Month
Product Description
Products Description
CLW brand new 4*2 130HP 3tons 3000L water tank Euro 5 JMC fire truck specification
A modern fire truck is usually a multi-purpose vehicle carrying paid firefighters or volunteers and equipment for a wide range of firefighting and rescue tasks. Therefore, most fire truck carry equipment such as ladders, pike poles, axes and cutting equipment, bars, fire extinguishers, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus (SCBA), and general tools. Many fire appliances are based on standard truck or lorry models with heavy duty suspensions, brakes, tires, alternator, transmission and cooling systems; audible and visual warnings such as sirens, horns, and flashing lights; and a two-way radio.
Product Paramenters
ITEM
PARAMETER
UNIT
DATA
Overall Dimensions
mm
5990×2010×2500
GVW
kg
8000 approximate
Curb Weight
4105 approximate
Rated Load
3000 approximate
Max Speed
km/h
100
Leaf Spring (F/R)
pcs
20/12
Drive Wheel
4*2
Chassis Model
JX1043TSG26
Manufacturer
JMC  Group  Co., Ltd.
Wheel Base
mm
3360
Tire Specification
inch
7.00R16LT 10PR
No. of Tires
pcs
6+1 spare
Engine
Engine Type
JX4D30A6H
Manufacturer
JiangLing  Engine Co., Ltd.
Engine Fuel
Diesel
Engine Horsepower
hp
129
Displacement
ml
2892
Emission Standard
Euro VI
Cab
Allow passenger
3+3
Row
Double
Water tanker
Capacity
L
3000
Fire fight pump
Type
Centrifugal Pump
Model
CB10/30
Pressure
Mpa
1.0
Flow Rate
L/S
30
Section depth
m
>7
Section time
Second
<30
Delivery Outlet
mm
65
Fire fighting gun
Model
PS30
Pressure
Mpa
1
Flow Rate
L/S
20
Range distances
m
>55
Rotary angle
deg
360
Pipeline system
Inner inlet pipe
Φ100mm one inlet pipe , from tanker to fire flighting pump . WithΦ100mm butterfly valve connect water tanker and water pump .
Exterior inlet pipe
Both sides of the pump inlet pipeΦ100mm, get out of straw, pull the tooth and tube within the interface, ( plug seal ) ; both
sides of the pump directional drawing water suction pipe . Φ100×2m (4 pieces )
Equipment
1. 80W alarm light
2. Rotating lights switch
3. PTO Control Switch
4. One manhole
5. Install overflow valve
6. Fluid level indicator
7. Effluent discharge inlet
8. Long rows of lights
9. Fire ground Light ( 12V ,60W)
Details Images
Our company
ChengLi Special Automobile Co.,Ltd, is a big manufacturer producing all kinds of special
trucks . .It has registered trademarked “CLW”.Our company cooperates with famous chassis manufacturers , such as DONGFENG,FAW,SINOTRUCK,ISUZU, FOTON ,JAC, SHACMAN JMC etc.
Our leading productions include more than 300 types of trucks such as Water truck ,Fecal suction truck,Sewage suctions
truck ,Garbage truck,Road sweeper ，Fuel tank truck,High altitude operation truck , Truck with crane ,Dump truck ,
Semi-trailer,Fire fighting truck ,Van truck,Prime mover,Chemical liquid truck ,Bulk cement truck,Concrete mixer truck, wrecker truck, ambulance ,LPG pressure vessel ,etc.Our company has solid technology , flawless inspection, advanced equipments, reliant quality and flexible modes of operation .what's more ,it has roundly passed the certification of ISO9001 ,ISO14001, OHSAS18001 ,the 3C ,ADR certification and other certifications that export needed .
Certifications
Customer Photos
Product packaging
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro shipor according to your requirements
