Home /Products/Articulating Boom Truck/TRUCK CRANE 16 Ton Knuckle Boom Crane Truck Mounted With Good Hydraulic Lifting Arm Price

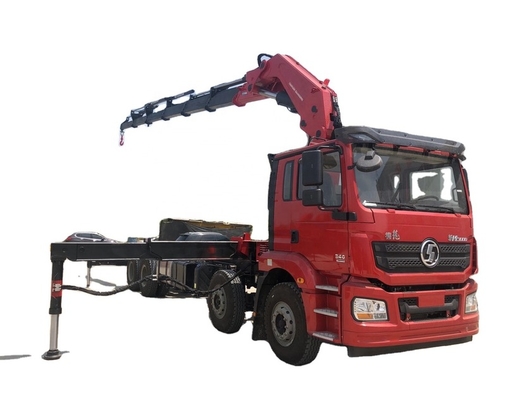

TRUCK CRANE 16 Ton Knuckle Boom Crane Truck Mounted With Good Hydraulic Lifting Arm Price

1.0 Sets
MOQ
$30,921.00(1 - 4 Sets) $29,921.00(>=5 Sets)
Price
TRUCK CRANE 16 Ton Knuckle Boom Crane Truck Mounted With Good Hydraulic Lifting Arm Price
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Philippines
Condition: New
Application: Lifting Machinery
Rated Loading Capacity: 10070kg
Rated Lifting Moment: 32t.m
Max. Lifting Height: 16.2m
Span: 5.9m
Warranty: 1 Year, 1 Year
Hydraulic Cylinder Brand: Shen Bai
Hydraulic Pump Brand: Shen Bai
Hydraulic Valve Brand: Shen Bai
Engine Brand: YuChai
UNIQUE SELLING POINT: Hot Sale With Good Price
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Pump, Gearbox, Engine
Weight (KG): 4100 Kg
Max Lifting Weight: 16Ton
Max Lifting Height: 16.2km
Boom Type: Straight Boom Crane 6-8 Arms
Chassis Brand: SHAC MAN
Driving Type: 8x4 LHD/RHD
Engine Brand: Yu Chai
Working Radius: 14m /17.7m
Applicable Industries: Building Material Shops, Construction Works
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Malaysia, Algeria, Sri Lanka, Bangladesh, South Africa, Kyrgyzstan, Uzbekistan, Tajikistan
After-sales Service Provided: Video Technical Support, Online Support
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Bulk, Ro-ro shipping
Supply Ability: 1000 Set/Sets per Year
Product Description
SIMILAR PRODUCTS
PRODUCT SPECIFICATIONS
Factory direct sales truck mounted crane
Inquiry us for better price
2M 16 ton knuckle / foldable Crane information
Crane Specification
1
Crane Brand
Chang xing
Remarks:
16 ton, 20 ton, optional , colors optional
2
Arms sections
5-6
5
3
Max lifting capacity(kg)
16000kg (2m)
1400kg (2.5m)
4
Max. Lifting moment
32 ton.m
35 ton. m
5
Working radius(m)
13.73 m
18m
6
Max lifting height(m)
16m
20.1m
7
Crane weight(kg)
4100kg
6200kg
8
Operation pressure
30mpa
31mpa
9
span(m)
5.9m
5.2m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
16 /20 ton
Max Speed
88km/h
2
Chassis Brand
SHAC MAN
Axles
4
3
Rated loading weight
13505 /13570 Kg
Cab
2/3 person
4
Curb weight
17300 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
1200 x 255 x398 cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
840/800 x 245/235 x 60/55 cm
Horse Power
295/310hp
7
Wheelbase
230+410+135 cm
Emissions
7700/9726ml
8
Drive type
8x4
Chassis Brand
SHAC MAN / Dongfeng / Faw / Howo /camc optional
CONTACT US
Eileen Wu Sales Manager
Manufacturer of Truck mounted crane, Changxing Cranes,
Refrigerator Truck,Box truck,Dump Tipper Truck
Hubei Shenbai Special Automobile Co., Ltd.
Mobile phone: 0086 13997880793
Tel: 0086 0722-3300315
Wechat: 008613997880793
Website: https://shenbaitruck.en.alibaba.com/
https://www.shenbai-group.com
E-mail: Sales88@shenbai-group.com
eileenwu287@gmail.com
Address:Jiujianwu Village, North Suburb ,Zengdu District, Suizhou,City, Hubei Province,PRC
Product Overview
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications,
such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.. Our truck with crane also install Remote control, Brick clamping apparatus, different kinds of grab bucket, work basket, etc.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton, 35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.
For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
PRODUCT CONFIGURATION
Other Optional Dongfeng Trucks with cranes
Dongfeng 4X2 5 ton straight boom crane (1.8ton, 4ton available)
Dongfeng 6X4 10 ton Straight boom crane
Can apply for 12 ton
Dongfeng 8X4 16ton Straight boom crane
can apply for 20ton
Dongfeng 4X2 8 ton Knuckle boom crane with TIPPER truck
Dongfeng 6X4 10 ton knuckle boom crane
Dongfeng 8X4 16ton knuckle boom crane
Other Optional Chassis Brand with CX cranes:
Shacman Delong, FAW, HOWO
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.where is your company?
Our company is located in the city of Suizhou, Hubei province, China.

2.What are the advantages of your company compared with others?
regional advantage: we are located in Suizhou, where is a well-known city for construction machinery. competitive price: with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable. fast delivery: normally, we could have an immediate delivery of regular machines for our clients.

3. Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......

4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means. In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
The delivery time depends on the product that you have ordered. Generally 20-30 days.

5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.
The more details you give us about your desirable truck the more accurate solution we can provide.

6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working condition(materials to lift；local temperature)can also be important.

7.How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
Inquiry us:

1.We offer the full-series products with high level standard, of truck mounted cranes, garbage trucks, flatbed tow trucks, refrigerator trucks;

2. We can give the professional advice of products and shipping solutions.

3, Technical support: online/video guide, and spare parts!

4, We follow the whole order from offer, quotation, to shipping and after-sale.
All your inquiry and questions will be feedback quickly.
