50 Ton Hydraulic Mobile Truck Crane With Lifting Height 43m

1 Set
MOQ
$85,000.00(1 - 4 Sets) $55,000.00(>=5 Sets)
Price
50 Ton Hydraulic Mobile Truck Crane With Lifting Height 43m
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Germany, Indonesia, Pakistan, Thailand, UAE, Sri Lanka, Kazakhstan, Uzbekistan
Condition: New
Application: Construction
Rated Loading Capacity: 50 Tons
Max. Lifting Height: 59.2m
Warranty: 1 Year
Hydraulic Cylinder Brand: Kawasaki
Hydraulic Pump Brand: Kawasaki
Hydraulic Valve Brand: Kawasaki
Engine Brand: YUCHAI
UNIQUE SELLING POINT: High Load Moment
Machinery Test Report: CE/ISO
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gearbox, Engine, Pressure Vessel, Motor, Bearing, Gearbox, Engine
Weight (KG): 250000 Kg
Product Name: Truck Crane
Model: STC500S
Applicable Industries: Construction Works
After Warranty Service: Video Technical Support, Field Maintenance And Repair Service
Full-extend Arm: 41.5m
Unique Selling Point: High Operating Efficiency
Max Lifting Moment: 1774kN/m
Engine Model: Euro 3 / Euro 5
Crane Type: Folding Crane
Basic Infomation
Model Number: STC500S, Euro 3 / Euro 5
Payment & Shipping Terms
Packaging Details: nude package
Supply Ability: 100 Set/Sets per Month
Product Description

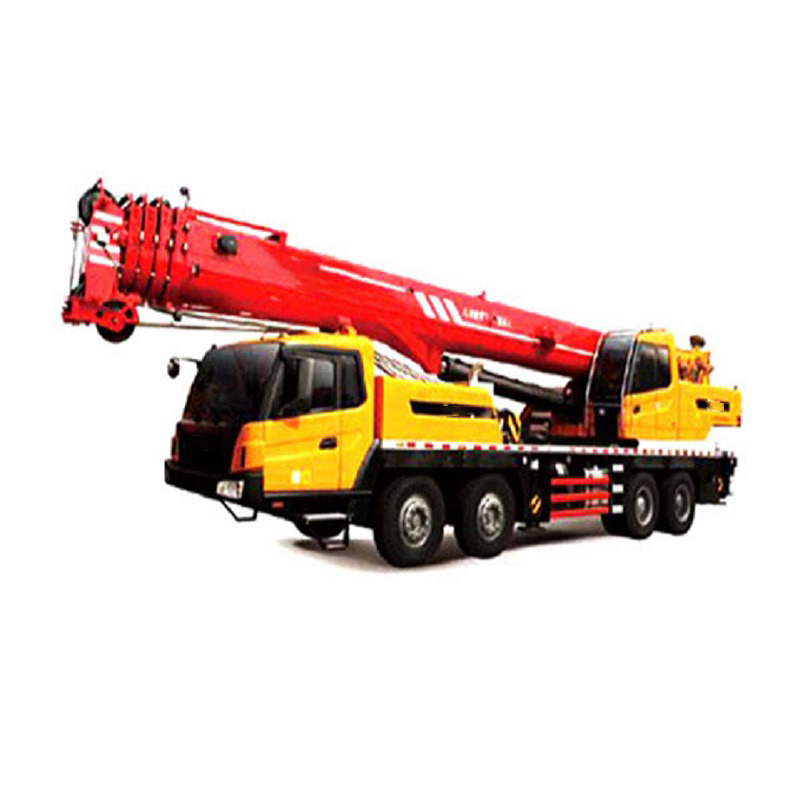

50 Ton Hydraulic Truck Crane STC500S With Lifting Height 43m
Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.
Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.Unique steering buffer design is adopted to ensure stable braking operation.
Capacit
Max. lifting capacity
50t
Dimensions
Overall lengthxwidthxheight
13750x2750x3800mm

Axle distance-1,2
1450mm

Axle distance-2,3
4000mm

Axle distance-3,4
1350mm
Weight
Overall weight
42t

Front axle load
16t

Rear axle load
26t
Engine
Rated power
250KW/2100rpm

Trated torque
1425N.m/1200-1400rpm


Travelling
Max. traveling speed
85km/h

Min.turning radius
12m

Min.turning radius of boom head
14.5m

Min. ground clearance
295mm

Approach angle
18°

Departure angle
12°

Max. gradeability
40%

Fuel consumption per 100km
less than 45L
