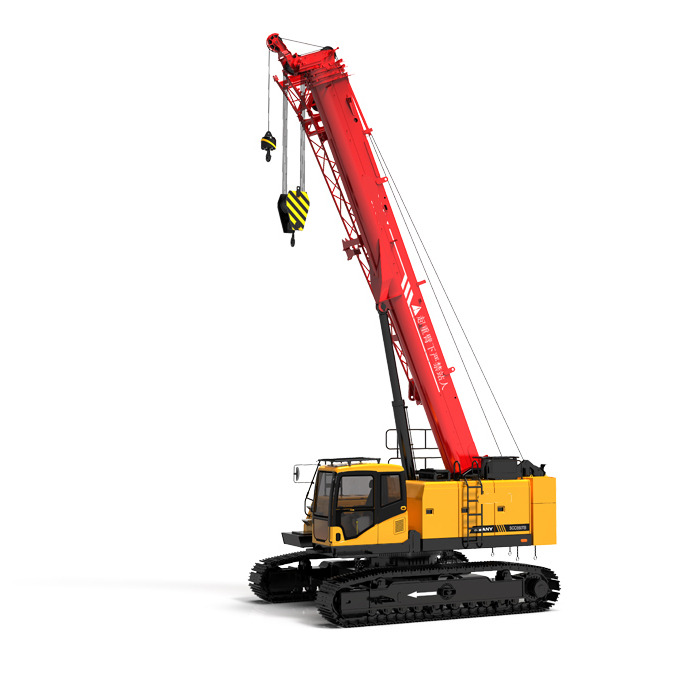

MAXIZM Crawler Crane SCC550TB
Sales Manager
Jack Wang
Maxizm Construction Machinery ( Qingdao ) Co.,Ltd.
Wechat/Mobile:+86-199 6315 8330
WhatsApp/Skype:+86-199 6315 8330
The SCC250TB-T5 crawler crane has the characteristics of excellent performance, strong lifting, safety and reliability, and reliable structure.
• Excellent performance: the length of the fully extended boom is 42.5m, and the maximum lifting height of the main boom is 43m;
• Strong lifting load: U-shaped large-section main boom, single-board boom head, maximum lifting moment 1175KN.m;
• Safe and reliable: 1400mm diameter slewing ring is adopted, the carrying capacity is increased by 25%, and the operation is safe and reliable;
• Reliable structure: high-strength steel plate welding, reinforced structure type, strict finite element analysis;
• High-end configuration: Imported walking reducer is used, and the four-wheel area of the lengthened excavator is equipped with a small ground pressure, which is suitable for the harsh road construction environment;
• Strong power: the maximum speed is 2.6km/h; the maximum gradeability is 45% (24° slope), and the driving force is strong;
• Chassis: The unfolding center distance is 4300, the length is 5479; the maximum climbing degree is 45%, and it is equipped with 4 anti-derailment devices.
|
Speed parameter |
|
|
Maximum single rope speed |
120m / min |
|
Maximum turning speed |
2.5rpm |
|
Maximum walking speed |
2.6km / h |
|
Size parameters |
|
|
Transport length |
13448mm |
|
Transport full width |
2980mm |
|
Transport full height |
3112mm |
|
Track shoe width |
700mm |
|
Weight parameter |
|
|
The basic weight of the whole machine |
41t |
|
Maximum counterweight |
10t |
|
Ground pressure |
0.06Mpa |
|
Dynamic parameters |
|
|
engine model |
Weichai WP6G190E301 |
|
Maximum engine power |
140/2000kW/rpm |
|
Engine torque |
860/(1300-1500)N·m/rpm |
