| Unit | QY10 | QY12 | QY16 | QY25 | QY30 | |
| Max.toal rated lifting load | t | 10 | 12 | 16 | 25 | 30 |
| Min.working radius | m | 3 | 3 | 3 | 3 | 3 |
| Engine power | Kw | 118 | 118 | 199 | 206 | 206 |
| Max.travel speed | Km/h | 90 | 90 | 90 | 110 | 110 |
| Base boom length | m | 7.9-24.6 | 9.93-31.23 | 9.9-31.2 | 10.5-40 | 10.5-40 |
| Jib length | m | 5.4 | 5.45 | 8 | 7.3 | 7.3 |
| Max.lifting height | m | 30.5 | 36 | 39 | 48.2 | 48.2 |
| Max.working radius | m | 20 | 24 | 24 | 31.16 | 31.16 |
| Item | Unit | QY50 | QY60 | QY75 | QY80 | QY100 |
| Max.toal rated lifting load | t | 50 | 60 | 75 | 80 | 100 |
| Min.working radius | m | 3 | 3 | 3 | 3 | 3 |
| Engine power | Kw | 248 | 248 | 248 | 268 | 268 |
| Max.travel speed | Km/h | 110 | 110 | 90 | 90 | 90 |
| Base boom length | m | 11.3-42.5 | 11.6-43.6 | 11.9-42.5 | 12-46 | 13.2-50 |
| Jib length | m | 8.4-15 | 10.1-18.5 | 10.5-18.5 | 10.5-18.5 | 12.5-22.5 |
| Max.lifting height | m | 58.2 | 62.5 | 63 | 63.5 | 72 |
| Max.working radius | m | 32 | 40 | 40 | 41 | 43 |

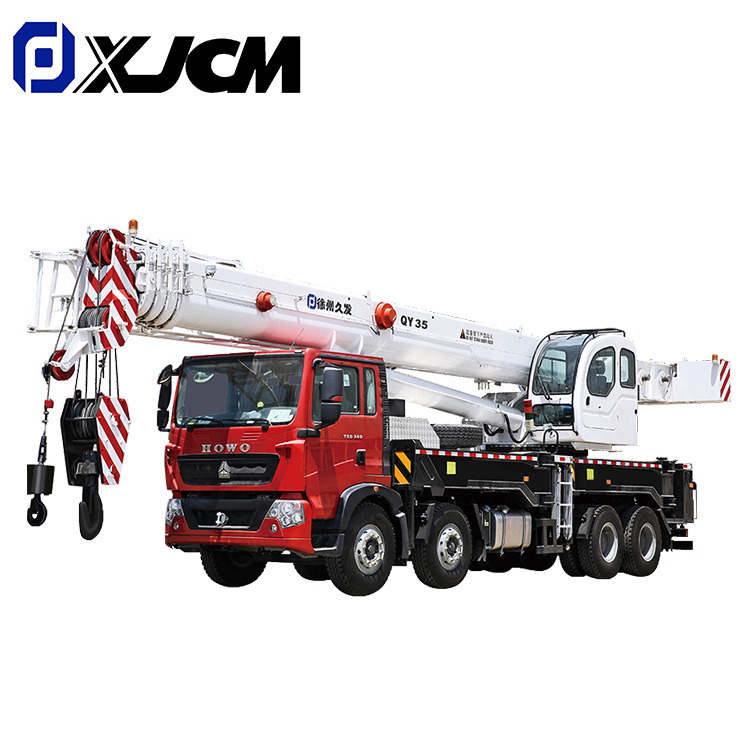

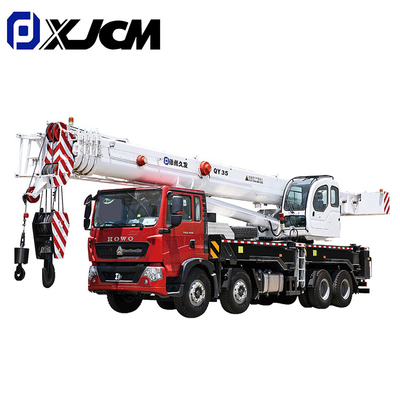

1.XJCM truck crane adopts the famous brand of chassis. The driver cab and operator cab are separated.
The advantage is that the crane has good mobility, high reliability and convenient after-sale service, etc.
2.The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and satisfying performance requirements.
3.New type cab, adjustable suspension seat, air motive shed, electron-hydraulic proportional handle and the push-button control, large color display and new dashboard, electric control H outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, easily operation, safe and reliable.
XJCM truck crane have our own factory . all the crane are design, made and sold by ourselves, our crane quality have got CQC and SQS. We could supply our products with high quality.
